ROUND BALE BALER-WRAPPER COMBINATION | G-1 F125 KOMBI
The G-1 F125 Kombi merges the work steps of baling and wrapping in one machine. This work method provides for immediate exclusion of air, resulting in unsurpassed feed quality. Better yet, it makes the work process particularly efficient - allowing one person working with only one tractor to both bale and wrap.
The G-1 F125 Kombi is a full-blown professional machine and scores high marks with a large number of highlights.
The Innovations at a glance
Gentle on the ground thanks to larger tires
The baler-wrapper combination comes standard with large-size wheels: 560/45-R22.5 Flotation Trac tires made by Vredestein. The tires ensure that weight is distributed evenly, significantly reducing the load on the ground in the field. This dramatically improves work especially when the ground is particularly soft. If dealing with extreme conditions, customers can opt for 710/35-R22.5 tires made by Nokian (optional)

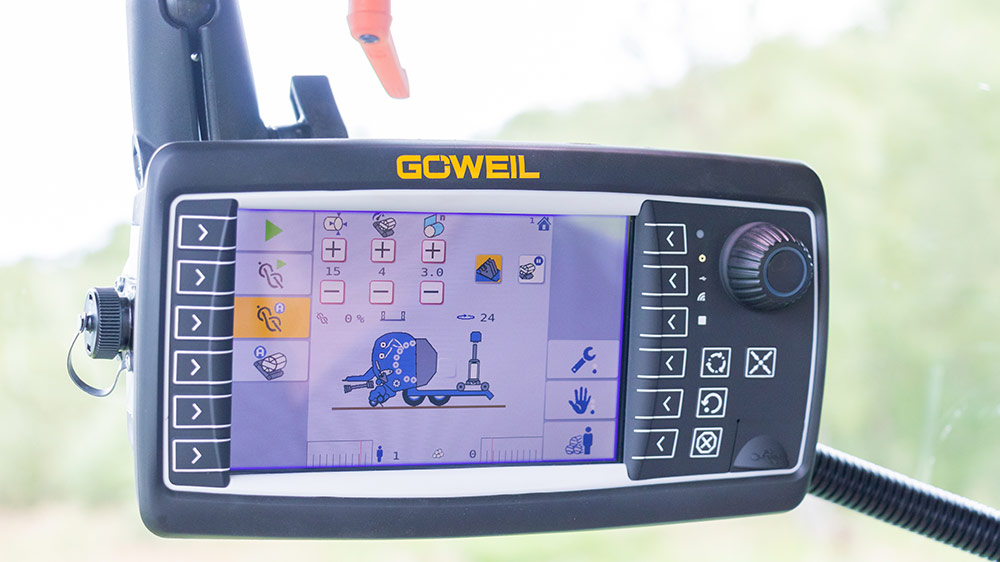

Easy operatıon wıth ISOBUS
GÖWEIL is making this baler generation available with ISOBUS as the standard option. The interface of this control is clearly arranged and easy to use and shows more information on the display. While GÖWEIL makes them available with the company’s own ISOBUS terminal, the machines are, of course, compatible with all other ISOBUS-capable terminals.

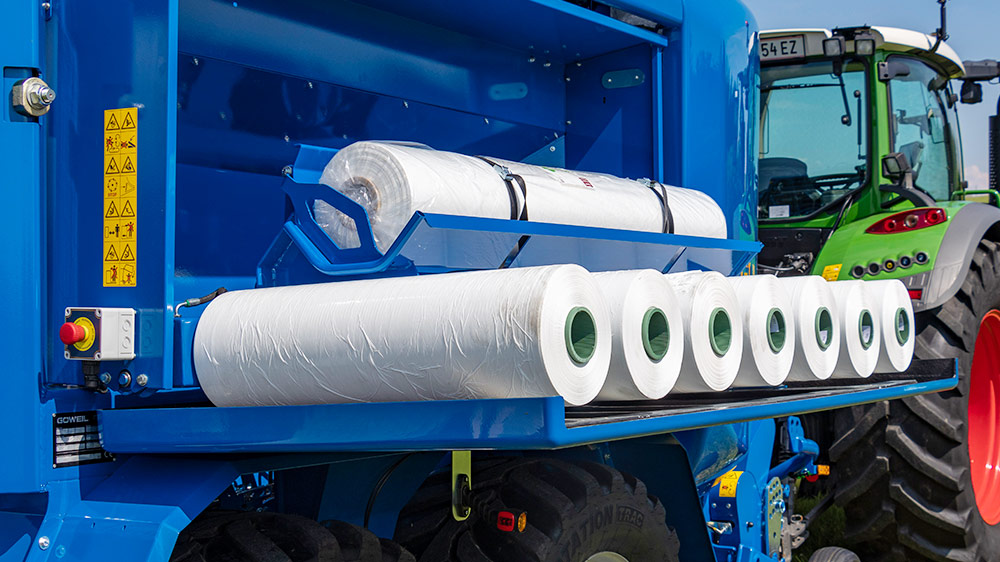

Closed fılm storage wıth ıncreased stowage space
GÖWEIL revamps the design of the machine in terms of both appearance and functionality. The closed, hydraulically folding film storage has space for 14 rolls of wrapping film plus 2 rolls of wide film or netting and keeps the rolls well protected against the weather and damage.
Improved performance
The drive system built into the baler of the latest generation has been given another major boost in performance by larger-sized chains. This extends the lifetime of the machine considerably and reduces the operation costs to a minimum.
Pick-Up
|
Camless pendulum pickup |
|
DIN rake width: 2.20 m (7’ 2”) |
|
Rows of tines: 6 |
|
Tine spacing: 51 mm (2 ”) |
|
Plastic strippers |
|
Twin rollers |
|
Touch wheels with pneumatic tires |
Drive
|
PTO speed: 1,000 rpm |
|
AFC Auto Flow Control: split drive concept, |
| Overload safeguard with 2 cam switch couplings; |
|
Chains: |
|
Main drive – bale chamber: 24 OH |
|
Secondary drive of bale chamber: 100 HSP |
|
Rotor: 80 HSP Triplex |
|
Pickup: 80 HSP |
Feeding system
|
6-star rotor; |
|
Hydraulic drop floor |
|
Cutting unit with 30 twin blade reversible knives |
|
Cutting length: 35 mm (1 3/8 “) |
|
Hydraulic bar safety device |
Chassis & Tires
|
Tandem axle chassis; |
|
Tires: 560/45-R22.5 Flotation Trac; |
|
Brake system: dual-line air brake system |
Hydraulic system
|
Load sensing (can also be operated in conjunction with tractors without load sensing pump) |
Binding unit with camera system
|
Film and net binding, hydraulically adjustable brake roller, automatic monitoring |
Maintenance
|
Fully automatic central lubricator for grease and oil |
Control
|
Fully automatic ISOBUS program control (without touch display) |
Bale chamber
|
18 steel rollers (4 mm) reinforced on the inside (including cleaning & starter roller); |
|
Double-row pendulum roller bearings |
Drawbar
|
Rigid drawbar |
Wrapping machine
|
Twin wrapping arm |
|
Hydraulically actuated wrapping table |
|
Bale deposit backwards |
|
4 bale conveyor belts including belt guide |
|
4 bale guide rollers |
|
Film stretching unit for 750 mm |
|
Automatic film cutting and holding system |
|
Film monitoring unit; |
|
Single-film mode |
|
Hydraulically lowering, closed film storage for 14 rolls of film and 2 rolls of wide film or netting; |
|
LED work lights |
|
Additional roller for wrapping table |
