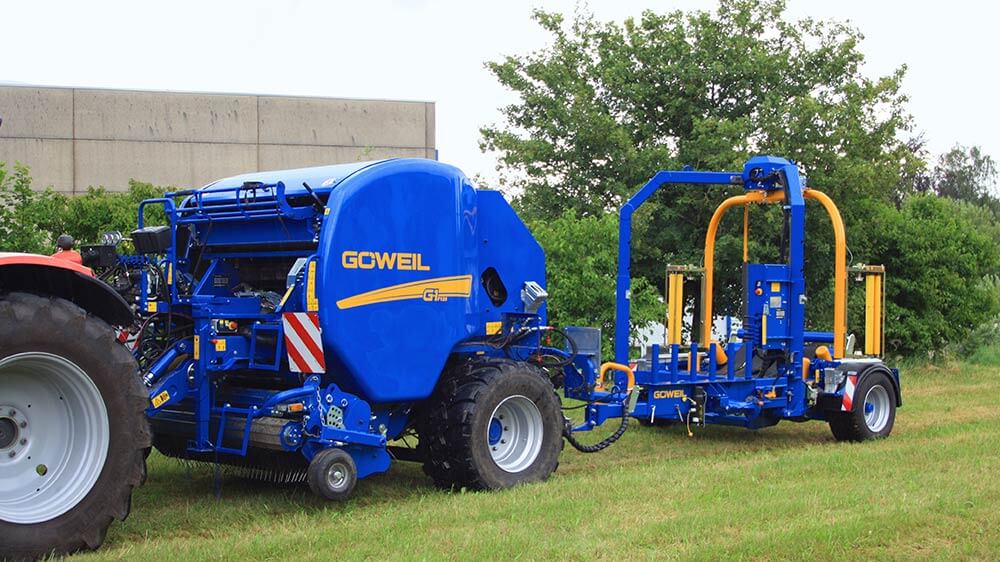

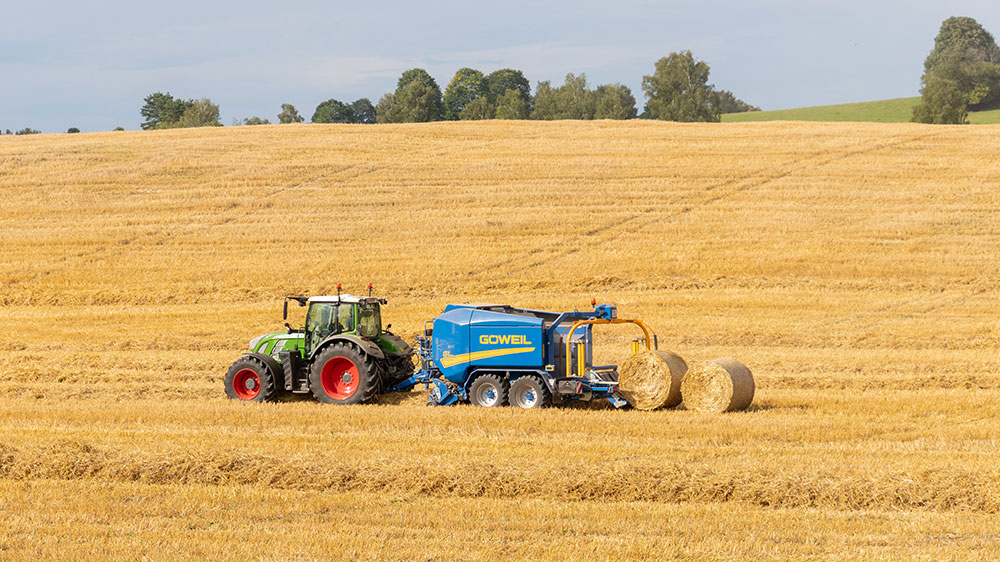

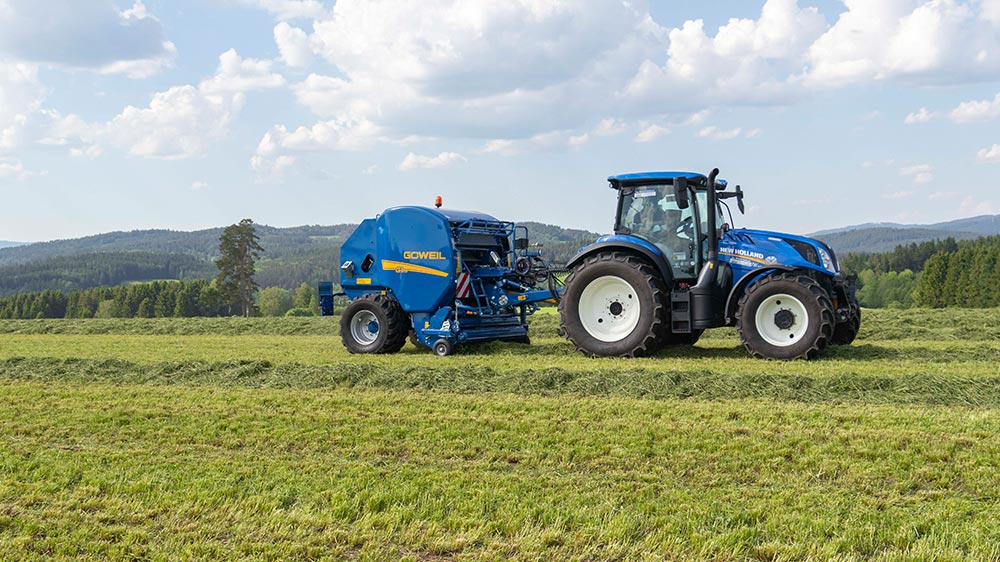

ROUND BALER | G-1 F125
While developing our G-1 F125 fixed chamber baler, we focused on the goal of designing a machine that offers true professionals the greatest impact force possible. In addition to equipping this new machine with an exceptionally sturdy design, we revisited all common "standard components" and redesigned them from the ground up.

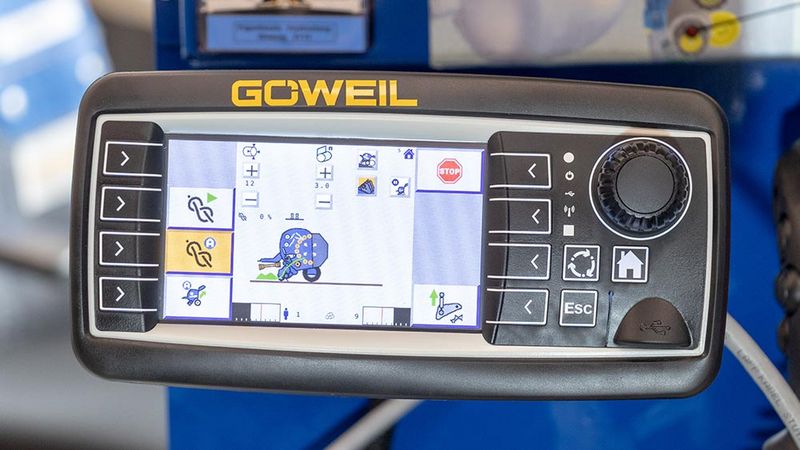

Easy operatıon wıth ISOBUS
GÖWEIL is making this baler generation available with ISOBUS as the standard option. The interface of this control is clearly arranged and easy to use and shows more information on the display. While GÖWEIL makes them available with the company’s own ISOBUS terminal, the machines are, of course, compatible with all other ISOBUS-capable terminals.
Improved performance
The drive system built into the baler of the latest generation has been given another major boost in performance by larger-sized chains. This extends the lifetime of the machine considerably and reduces the operation costs to a minimum.
Pick-Up
The starting point of every firmly compressed round bale is the clean pickup of the base feed: Its pendulum suspension allows the 6-row pendulum pickup to deliver maximum conveyance capacity along with superior ground adaptation and enables it to absorb even the largest swaths without a hitch.

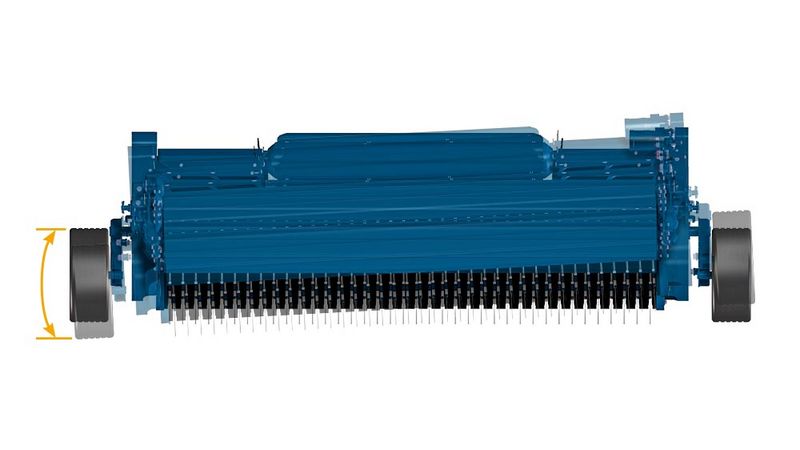

Pendulum-pıck-up
The suspended installation in a central position creates a swing range of 150 mm. It provides for top-notch ground adaptation and compensates for any unevenness in the terrain with perfect ease. Doing without a cam track, the pendulum pickup offers a DIN rake width of 2.20 m and large conveying screws on the sides that guarantee an optimum flow of material to the rotor. Equipped with tines spaced 51 mm apart across six rows, the pickup delivers firstrate raking performance even when handling extremely wide swaths.

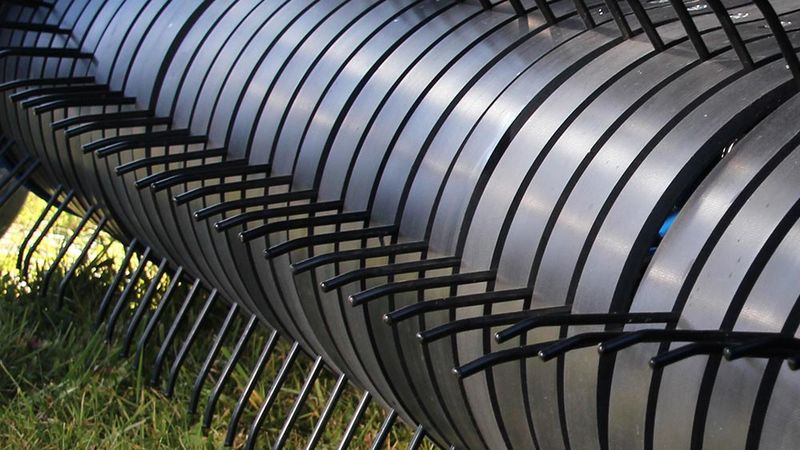

Plastıc strıppers
Another unique feature are the plastic strippers. Exceptionally resilient, these strippers withstand even the greatest amount of stress and will not bend if colliding with foreign objects. Stripping the material off with great efficiency, the tines also enhance the flow of material.
Twın roller holdıng-down devıces
Comprised of twin rollers, the standard holding-down devices with a new suspension boost the material flow even when dealing with uneven swaths and fill the bale chamber in a continuous and uniform manner.
Smoothly runnıng touch wheels
Fitted with pneumatic tires, the touch wheels work in perfect harmony with the pendulum pickup and run with maximum smoothness. Adjusting the height of the touch wheels is quick and easy thanks to perforated rails that eliminate the need for any tools. Customers can also opt for swiveling touch wheels.
Pick-Up
|
Camless pendulum pickup |
|
DIN rake width: 2.20 m (7’ 2”) |
|
Rows of tines: 6 |
|
Tine spacing: 51 mm (2”) |
|
Plastic strippers |
|
Twin rollers |
|
Touch wheels with pneumatic tires |
Drive
|
PTO speed: 1,000 rpm |
|
AFC Auto Flow Control: split drive concept |
|
Overload safeguard with 2 cam switch couplings |
|
Chains: |
|
Main drive – bale chamber: 24 OH |
|
Secondary drive of bale chamber: 100 HSP |
|
Rotor: 80 HSP Triplex |
|
Pick-Up: 80 HSP |
Feeding system
|
6-star rotor |
|
Hydraulic drop floor |
|
Cutting unit with 30 twin blade reversible knives |
|
Cutting length: 35 mm (1 3/8”) |
|
Hydraulic bar safety device |
Chassis & Tires
|
Single axle |
|
Tires: 500/60-R22.5 FL630 Plus |
|
Brake system: dual-line air brake system |
Hydraulic system
|
Load sensing (can also be operated in conjunction with tractors without load sensing pump) |
Binding unit
|
Net binding |
|
Hydraulically adjustable brake roller |
|
Automatic monitoring |
Maintenance
|
Fully automatic central lubricator for grease and oil |
Control
|
Fully automatic ISOBUS program control (without touch display) |
Drawbar
|
Rigid drawbar |
Bale chamber
| 18 steel rollers (4 mm) reinforced on the inside (including cleaning & starter roller) |
| Double-row pendulum roller bearings |
Tires
600/50-R22,5 Flotation Trac
710/40-R22,5 Flotation Trac
Swiveling touch wheels
LED work lights
Set of additional knives
Set consisting of 30 twin-blade reversible knives
Bale ramp
A bale ramp can be used to deposit the bale outside of the swivel range of the tailgate. Resetting the machine is not necessary.
Bale catcher
- Eğimli konumlarda daha kolay balya atmaya izin verir.
- Dikkat! Balya rampası ile birlikte kullanılamaz.
Kamera Sistemli Film Ciltleme Ünitesi
Renkli monitör dahil olmak üzere bağlama ve balya birikimini izlemek için 2 kamera

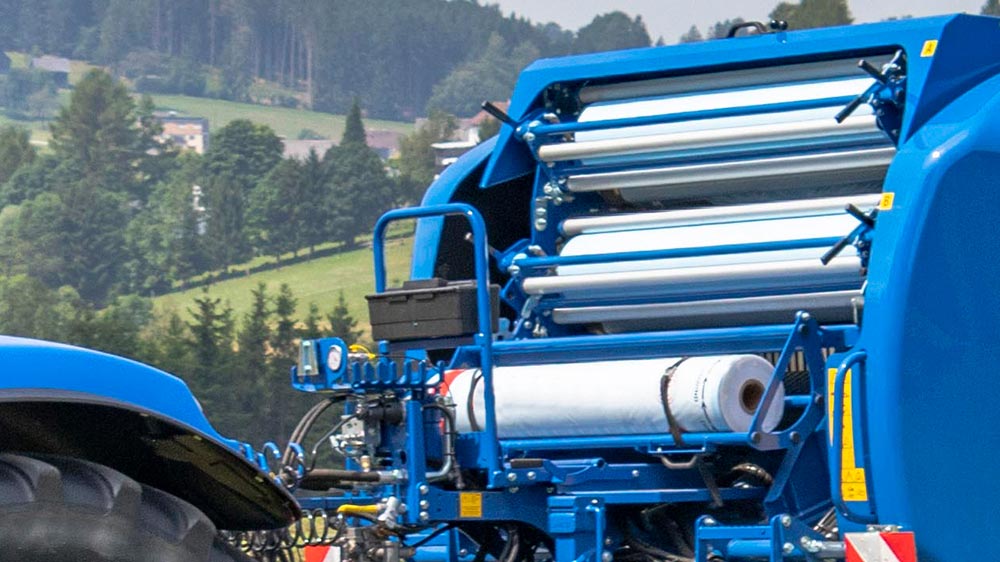

Çift Ciltleme Ünitesi
- Allows for easier bale dropping in slope positions.
- Attention! Cannot be used in combination with the bale ramp
Hydraulic articulated drawbar
Hydraulic articulated drawbar with two double-acting cylinders
Hydraulic articulated drawbar with suspension
Hydraulic articulated drawbar affords the operator an exceptionally smooth ride
Drive axle, complete
- Hydraulic drive uphill
- Automatic braking function downhill
- ABS system
- Automatic regulation
- Parameters can be set on the terminal
4.3" touch display
With 8 buttons and encoder
7.0" touch display
With 12 buttons and encoder
ISOBUS-capable power supply for tractor
Wiring harness is required if ISOBUS is not available on the tractor
Camera system
2 cameras for monitoring binding and bale deposit, including color monitor
Silage additive dosage
Consisting of:
- Dosistar control unit
- Pump with filter
- Electronic flow meter
- Various nozzles
- 100 l tank
Cleaning kit with air pressure
Consisting of compressed air hose and air gun, used for cleaning the round baler.
Drawbar eye types
Customers can choose from a large selection of drawbar eye types
