G3010 Q Industry

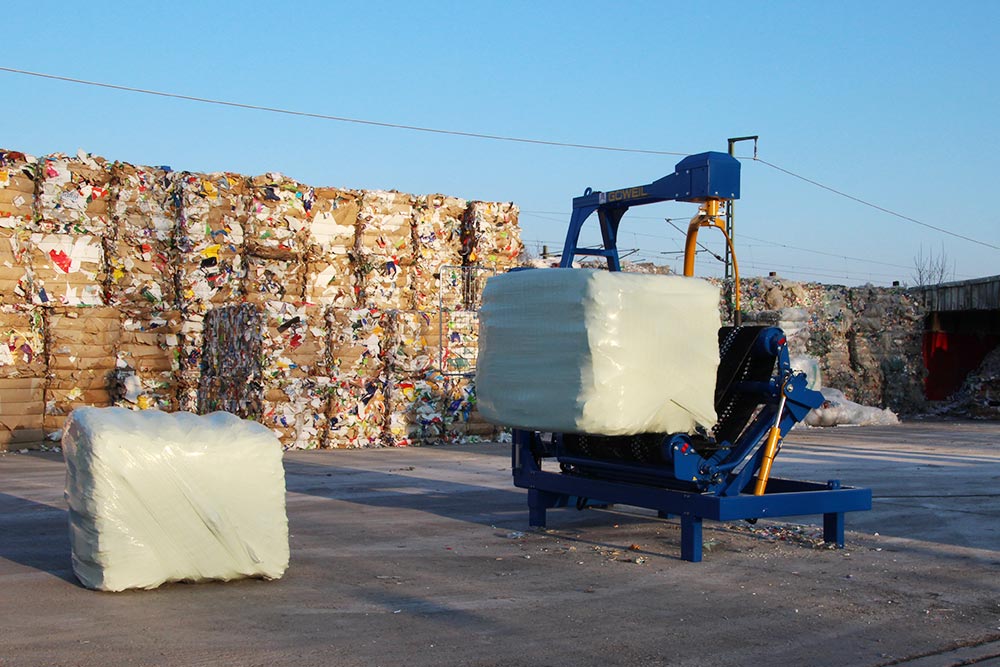

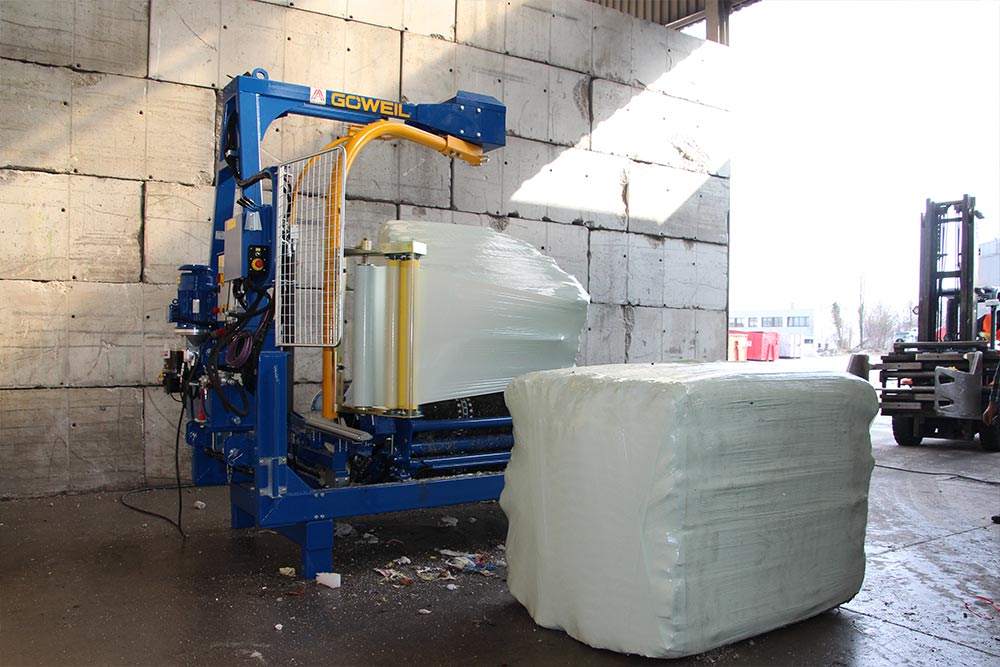

G3010 Q INDUSTRIE | SQUARE BALE WRAPPER

In the same way as the G4010 Q, the G3010 Q Industry can be used to wrap bales of all dimensions that are produced by common industrial presses. The length of the bales is limited to 1.60 meters.

G3010 Q Industry
G3010 Q Industry
G3010 Q Industry
G3010 Q Industry
G3010 Q Industry
G3010 Q Industry

Single wrapping arm

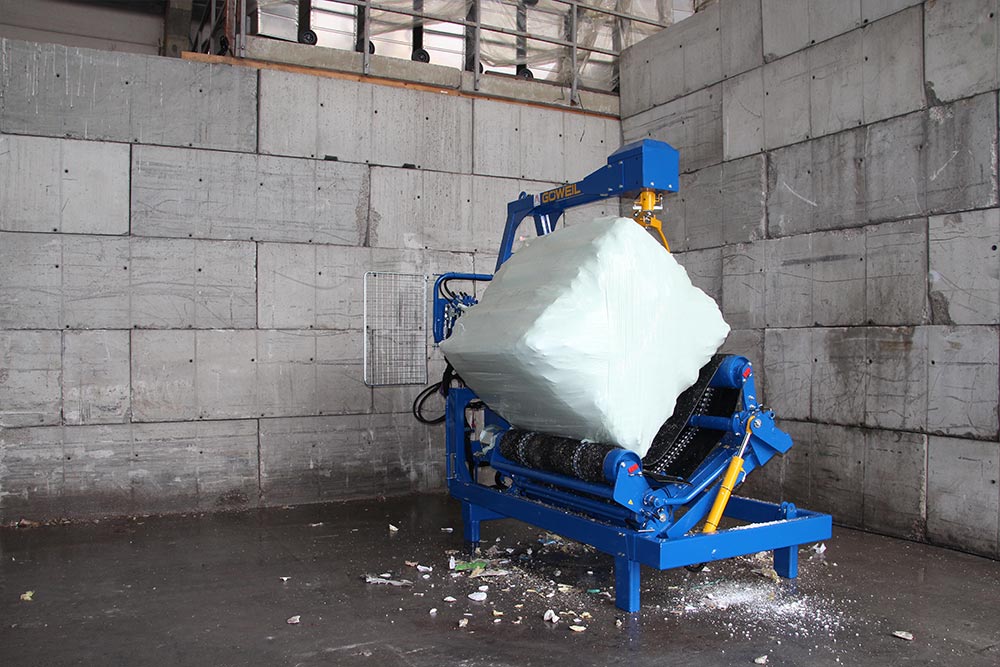

Hydraulically tilting wrapping table with mechanical belt length adjustment

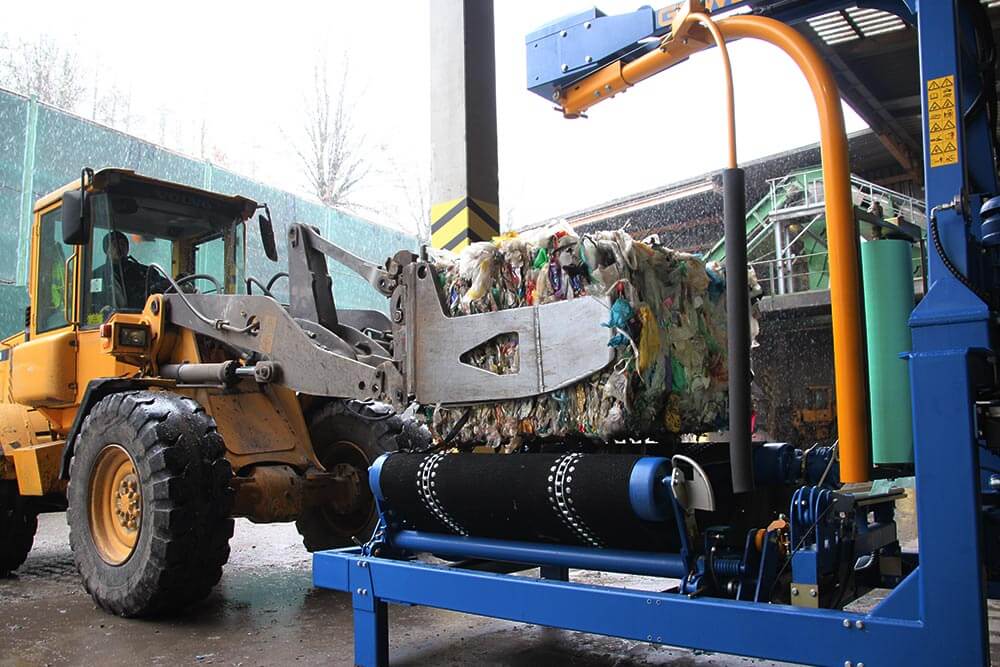

Wide, continuous conveyor belt with belt guide

Bale deposit to the right and the left

Automatic film cutting & holding system
Otomatik film kesme ve tutma sistemi

Electro-hydraulic drive including 7.5 kW electric motor

Three-point linkage Cat. II

Working headlight

Central lubricator

Support legs for easy transport by forklift

Oil cooler

Hydraulic oil tank heating unit

Film monitoring unit

Stops the wrapping process if film tears or runs out

Feed rate shut-off valve

This ensures that the film will overlap accurately for rectangular bales

Fully automatic program control PROFI with radio remote control

The execution of all work cycles is fully automatic

Technical data (basic model)

Weight: 950 kg (2,095 lbs)
Length: 3,000 mm (9' 11")
Width: 1,640 mm (5' 4")
Height: 2,750 mm (9' 1")

For all bale dimensions:

from 0,80 x 0,80 m to 1.20 x 1.40 m (32” x 32” to 48” x 56”)
Single / double bales: with a length of up to 1.60 m (63”)

Round bale diameter

 0,90 - 1,50 m (36” – 60”)

Self-sufficient oil supply



Required connections

3-pin power outlet for the electrical supply of the hand-held terminal (12V/10A)

Connection for electric motor: 400V/50-60 Hz, CEE 16A, protection class IP55
