G3010 Farmer

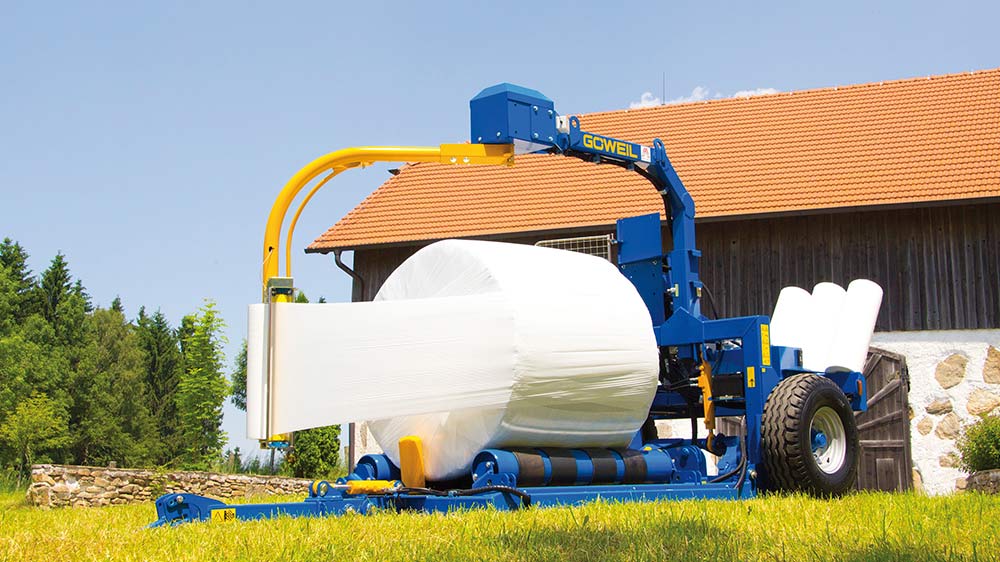

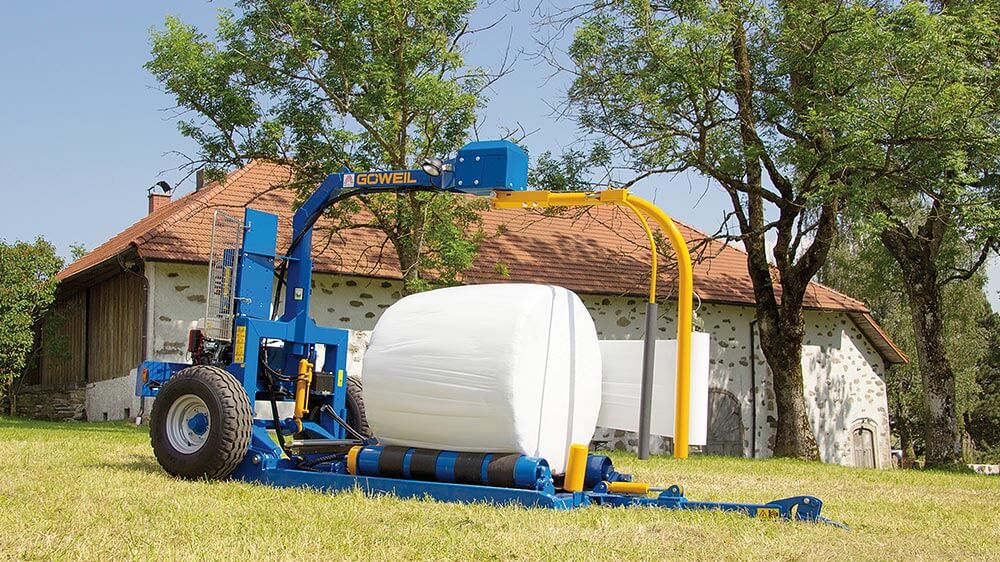

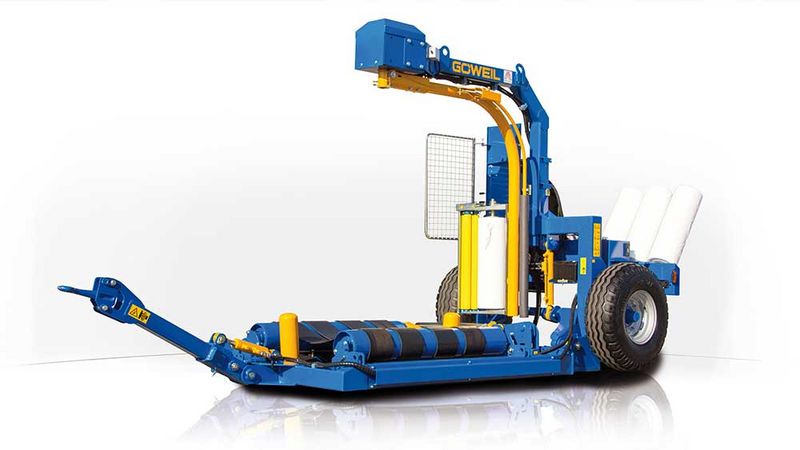

G3010 FARMER | ROUND BALE WRAPPER
The stationary wrapper is the ideal machine for single-person operation. The easy-to-operate control allows the operator to combine cycles with perfect ease – cutting down on costs for personnel and time! Thanks to its compact design, the Farmer can be transported using almost any tractor.
Desing
The low profile as well as the robust and solid construction and workmanship of the wrappers guarantee an exceptionally long lifetime. The conveyor belts and the two rotating bale guide rollers guarantee that the bale will continually move forward and, consequently, ensure a uniform overlap of the film.
Motor
The G3010 Farmer is equipped as standard with an 8.2 kW gasoline engine including battery, generator and electric starter as well as hydraulic system.
Control

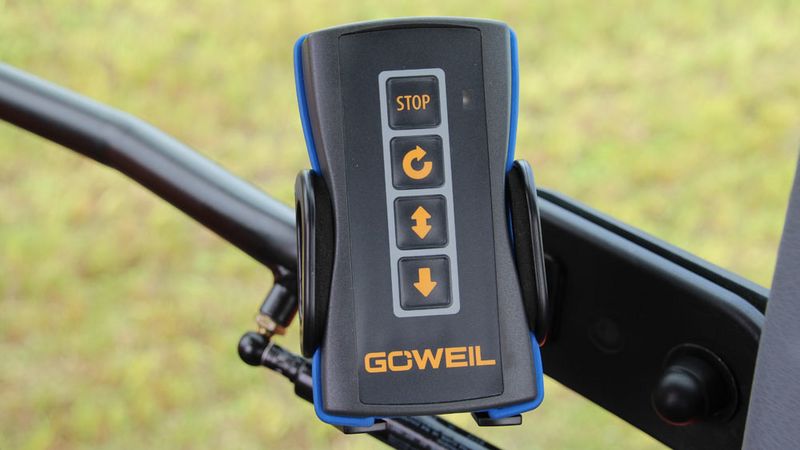

A genuine highlight is the user-friendly and easy-to-use program control STANDARD with wireless operation.
Wrapping arm with film stretching unit
The wrapping arm is equipped with a film stretching unit that can accommodate 750 mm rolls of film. The three patented plastic rollers provide for perfectly uniform stretching.
What is more, the rollers are not sensitive to temperature. This helps save film and guarantees firmly wrapped bales. The quick-release system makes it possible to change empty rolls quickly and effortlessly.
Drawbar & axle

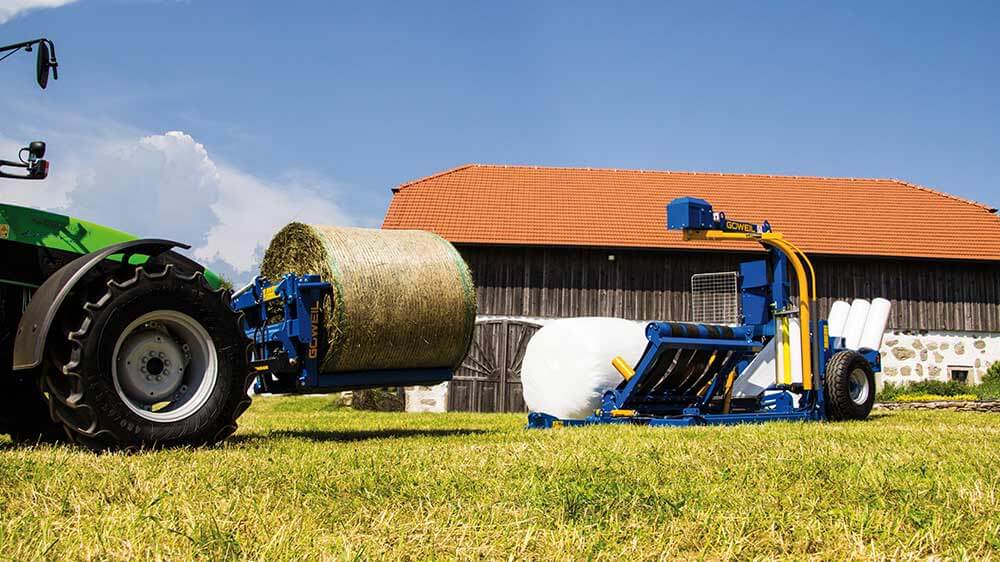

The hydraulically adjustable lift axle and the articulated drawbar make it possible to trail the wrapper and set it down at the wrapping position. Loading the wrapper using the fork attached to the three-point linkage is a breeze thanks to the low-profile design of the machine. This eliminates the need for an additional front loader.

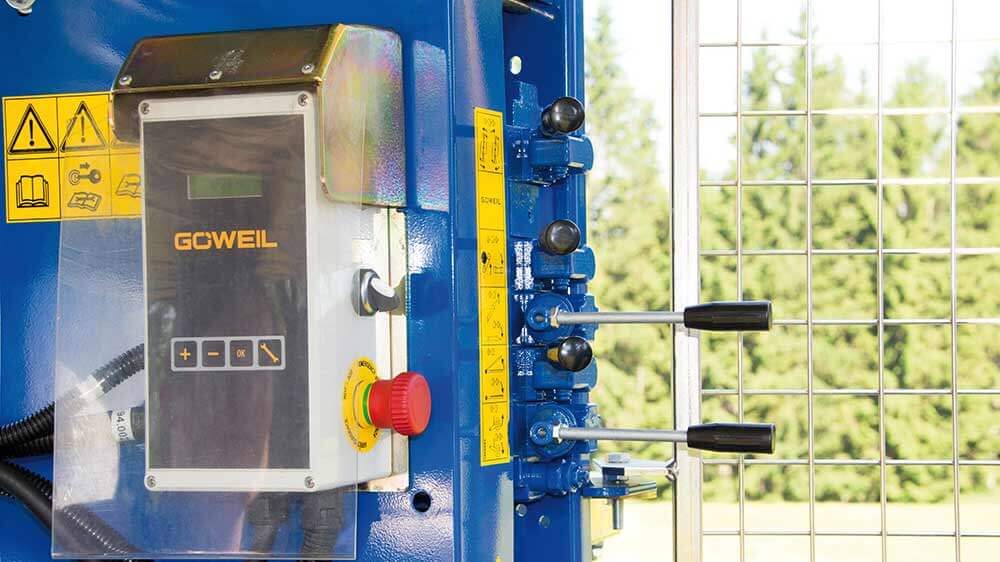

Lever
The levers come in particularly handy for maintenance and service operations. All functions can be executed directly at the machine. The driver can easily leave the program control in the tractor cab when he, for example, needs to change the film.
Automatic film cutting and holding system
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the film will unwind easily.

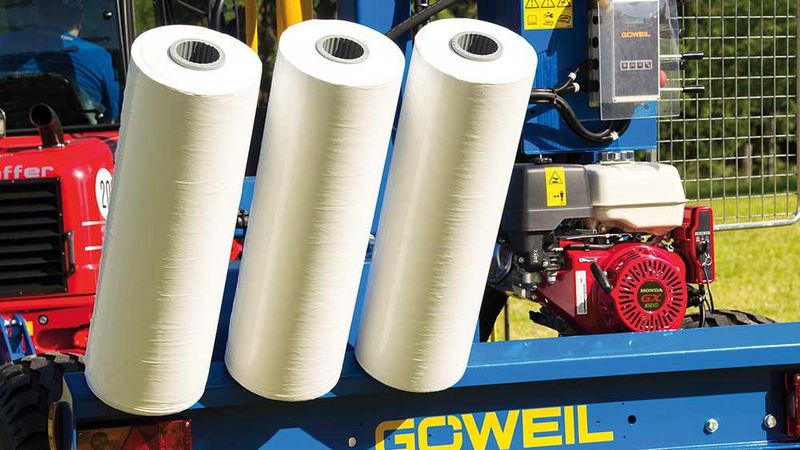

Film storage
When working long days, you need to make sure that you have enough film. The film storage on the G3010 Farmer wrapper allows you to carry along up to three rolls of film. The holders are mounted in such a way that you can load and unload the film rolls with ease at a comfortable working height.
