G3020 Q Profi

Agrotec

G3020 Q Profi

G3020 Q PROFI | SQUARE BALE WRAPPER

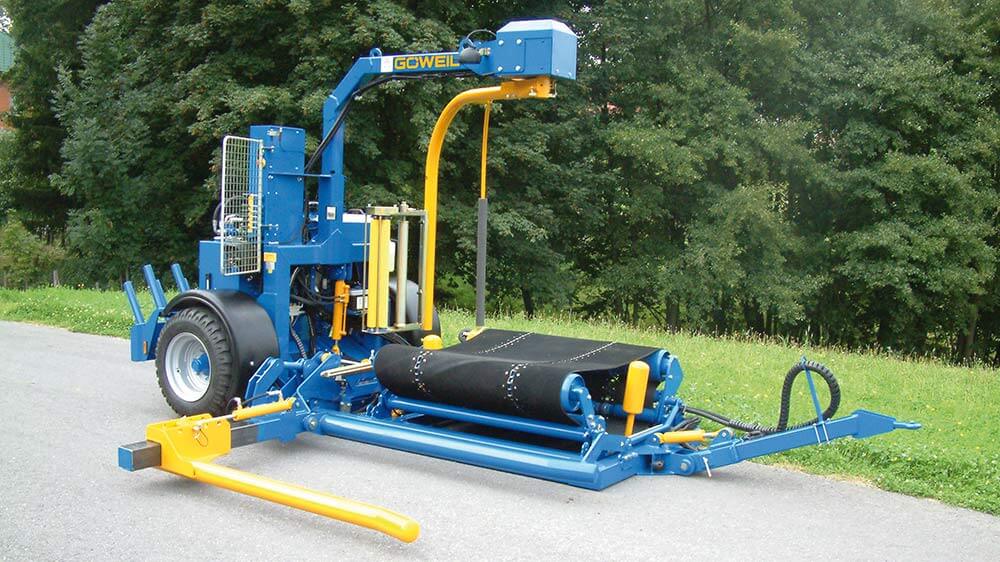

Equipped with a bale pick-up mounted on the side, the trailed machine G3020 Q Profi is the perfect square bale wrapper for use in the field. Thanks to the PROFI program control, the execution of all work cycles is fully automatic.

G3020 Q Profi
G3020 Q Profi
G3020 Q Profi

Single wrapping arm

Hydraulically tilting wrapping table with mechanical belt length adjustment

Wide, continuous belt with belt guide and 2 bale guide rollers

Bale pick-up for square and round bales

Bale pick-up on the right hand side with the direction of travel

Bale deposit to the left

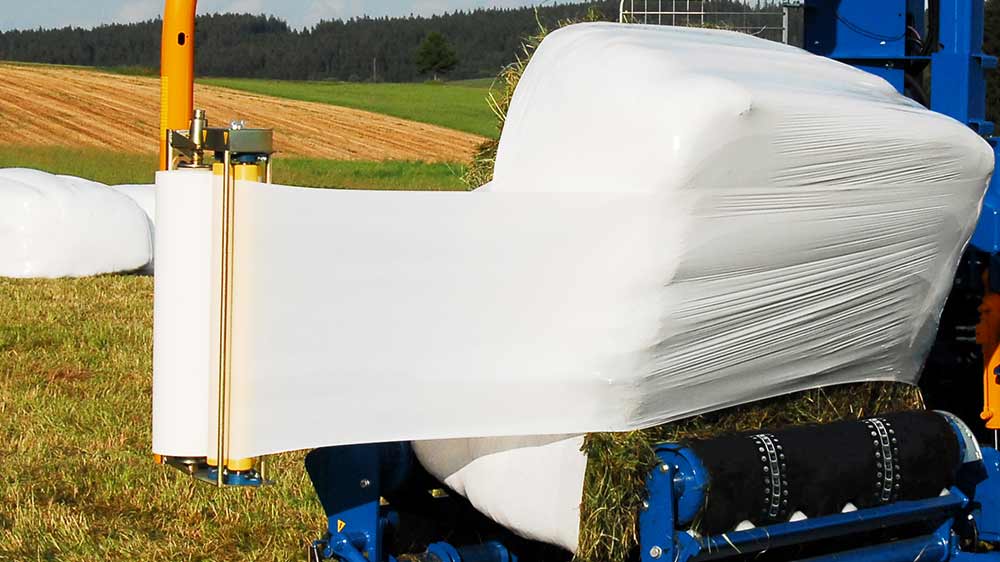

Combined film stretching unit 500 mm and 750 mm (20” and 30”)

Automatic film cutting and holding system

Hydraulically adjustable lift axle

Rigid drawbar for lower linkage link

Storage for 16 rolls of film

Tires 380/55-17AW

Light and indicator system

LED work lights

Feed rate shut-off valve

This ensures that the film will overlap accurately for rectangular bales

Fully automatic program control PROFI

The execution of all work cycles is fully automatic

Technical data (basic model)

Weight: 2,350 kg (5,180 lbs)
Length: 5,620 mm (18’ 6”)
Width: 2,410 mm (8’)
Height: 3,180 mm (10’ 6”) (with the lift axle extended)

For all bale dimensions:

up to 1.20 x 1.40 m (48” x 56”)
Bale length:

up to 1.60 m (63”)

Round bale diameter

 0,90 - 1,50 m (36” – 60”)
Oil requirement:

starting at 20 l/min at max. 190 bar
Bale weight round / space max. 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)

Required connections

1 pressure connection and 1 depressurized return for the supply of the wrapper

3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)

7-pin power outlet for the entire lighting system (excluding work lights)

Additional bale guide roller

Axle suspension

Hydraulic articulated drawbar

Dual-line air brake system

Dual-line hydraulic brake system - with emergency brake valve and accumulator

Hydraulic brake without accumulator and breakaway quick-closing device

Battery supply cable 5.3 meters (17 ft) 2x6 mm² with 3-pin power outlet

Lower linkage link

Rotating light

Tires 500/50-17F

Width altered to 2,545 mm (8’ 4”),
Height altered to 3,240 mm (10’ 8”) (with the lift axle extended)

Radio remote control

  • Required connection: 3-pin power outlet for the electrical Supply ofthe hand-held terminal (12 V / 10 A)

Film monitoring unit

  • Stops the wrapping process if film tears or runs out

3-cylinder diesel engine Kubota (without hydraulic oil)

  • 17.5 kW diesel engine
  • Water cooled
  • Battery
  • Electric starter
  • Hours counter
  • Return filter
  • 44 l hydraulic oil tank

Diesel engine speed control

  • Switches automatically to idle speed after the wrapping process or extended intervals. Only in combination with 3-cylinder diesel engine Kubota

Additional pipe for bale pick-up

  • Is required when two single bales (up to 0.60 x 0.90 m) (up to 2’ x 3’) are loaded in sequence in order to wrap a double bale

Twin bale pick-up

  • Is required when two single bales (up to 0.50 x 0.80 m) (up to 2’ x 2’ 6”) are loaded in order to wrap a double bale
