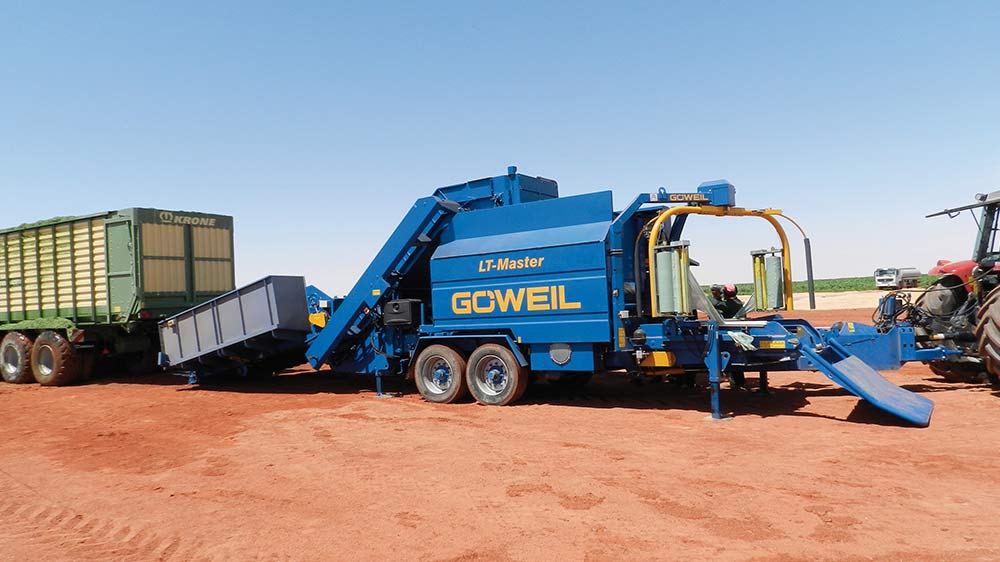

LT-MASTER | BALER-WRAPPER COMBINATION

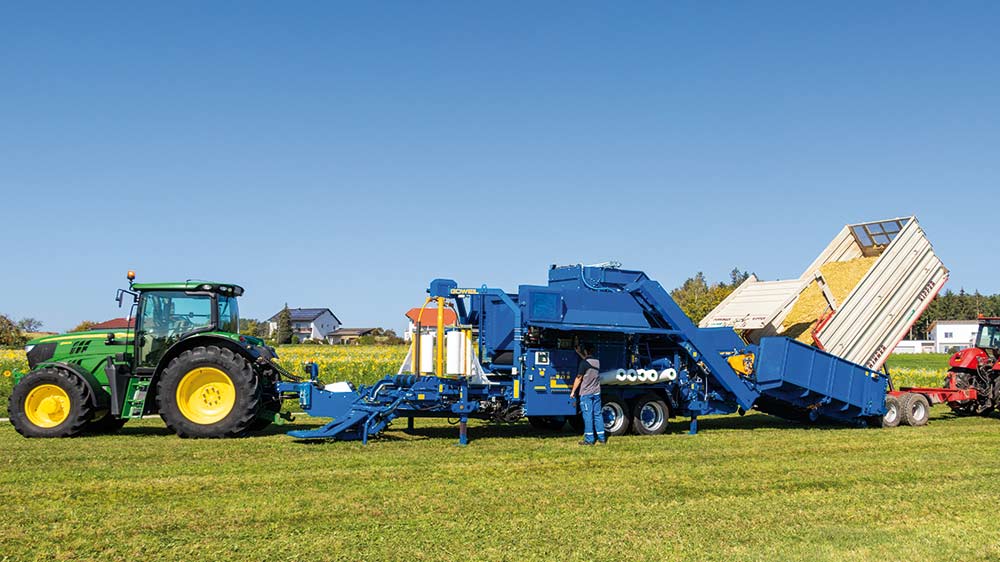

The LT-Master is THE baler-wrapper combination for round bales. This is because it can turn almost any chopped material into perfectly pressed and wrapped round bales - whether it be corn silage, CCM, alfalfa, hemp, sugar beet cossettes, mixed feed and various other materials. Numerous factors must be taken into account in order to achieve premium silage quality.

Not only is a high degree of feed compression important, but also a clean production process and the quick exclusion of air.

The LT-Master unifies these factors perfectly.

LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master
LT-Master

Twin wrapping arm

Dual binding unit for net and film

On-board hydraulic system with oil cooler

Hydraulic belt pre-tensioning

Refeed to prevent possible crumbling losses

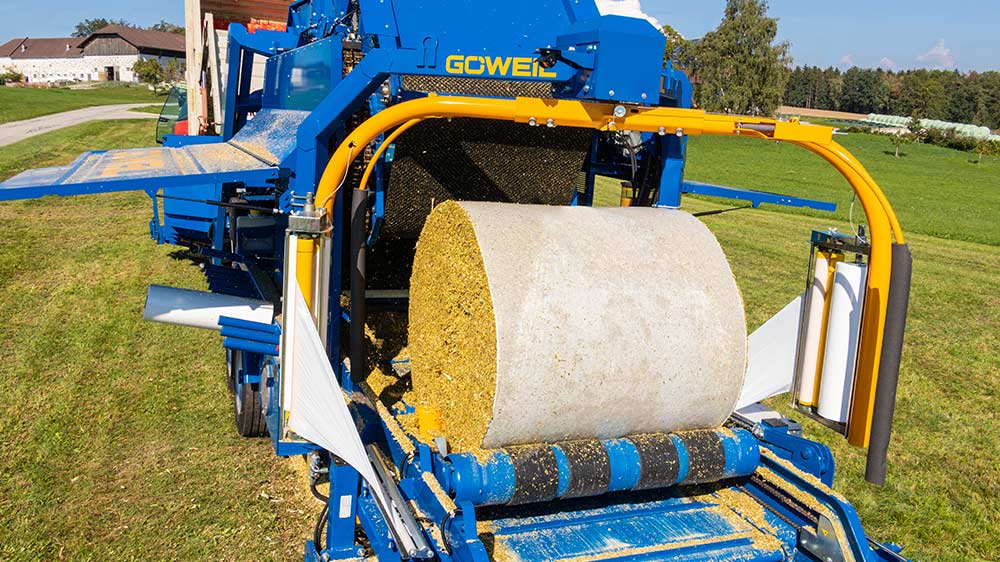

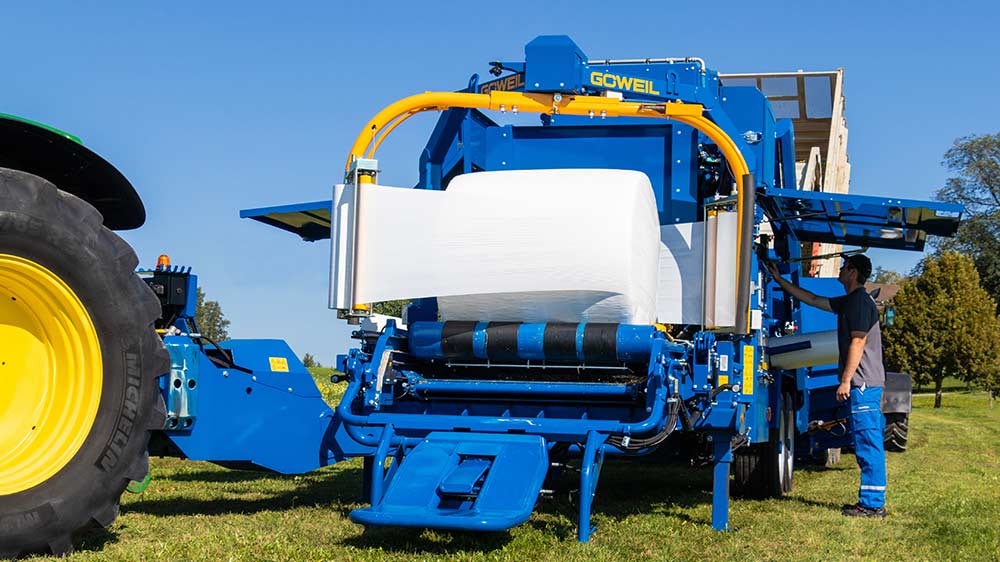

Hydraulically actuated wrapping table

4 bale conveyor belts including belt guide and 2 bale guide rollers

Bale drop towards the front via hydraulic bale delivery ramp

Height-adjustable drawbar

Film stretching unit 500 mm (20”) and 750 mm (30”) combined with overlap adjustment

Automatic film cutting and holding system

Single-film mode

Tandem axle chassis

Hydraulically lowerable film storage for up to 18 rolls of film

LED work lights

Dual-line air brake system for 80 km/h combined with hydraulic brake

Additional radio remote control for bale deposit

Automatic central lubrication system for oil and grease

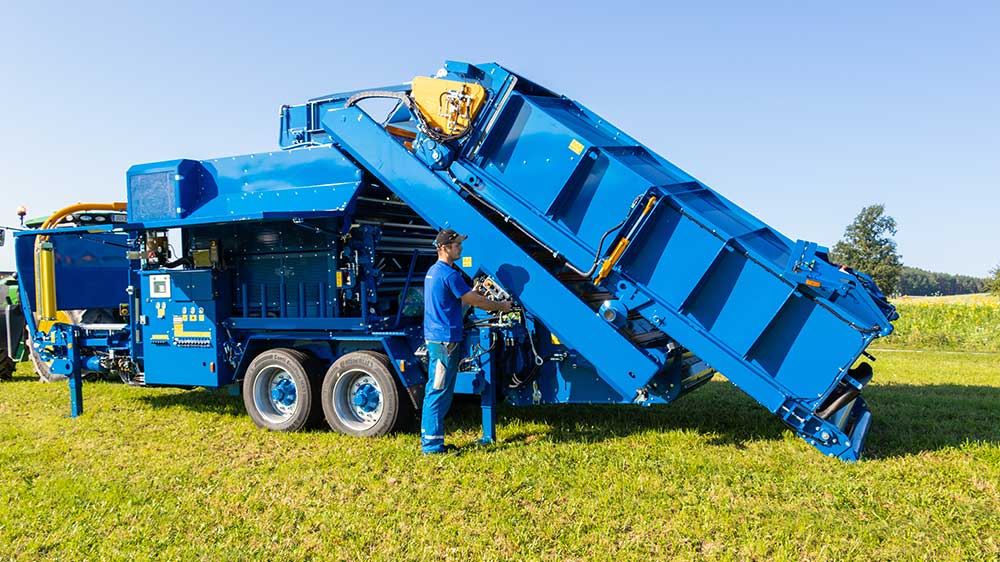

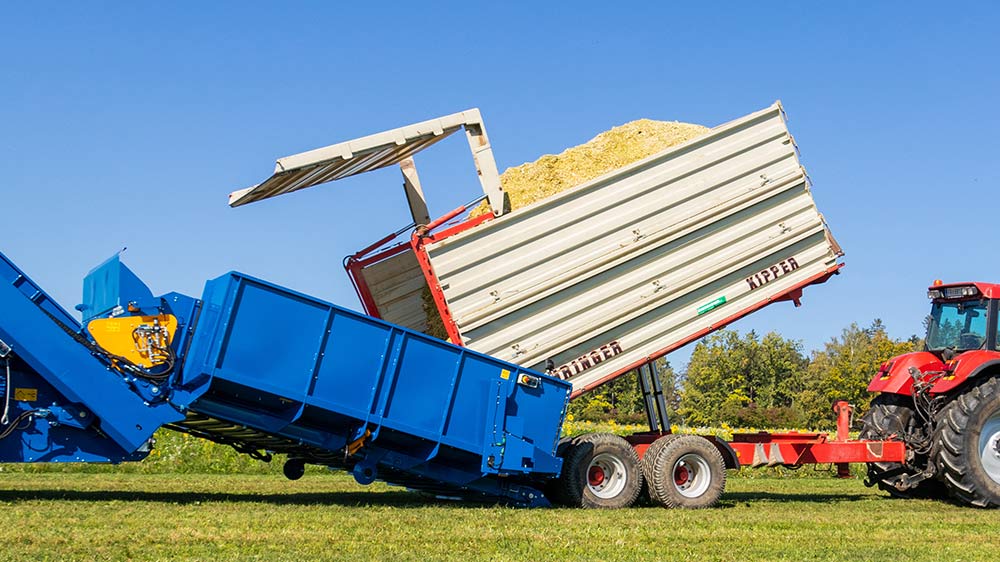

Integrated feeder

Working width 3.50 m (11’ 6”)

Variable bale size (only for film binding)

Infinitely variable bale size from 0.60 – 1.15 m (24” - 48”)

Camera system

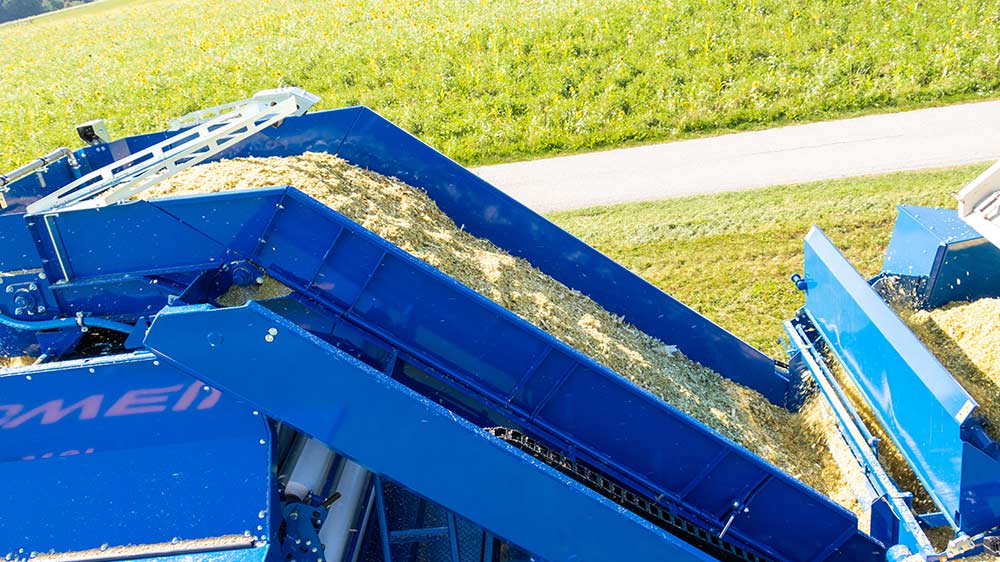

The four cameras are positioned such that they afford you a clear view of the top of the bale chamber, the sloping conveyor, the wrapping table and the rear of the machine (on the right in direction of travel) at all times.

Water injection for bale chamber

Consists of solenoid valve, tubing, and adjustable nozzles. For mixing water into dry materials.

Fully automatic program control PROFI

The execution of all work cycles is fully automatic

Technical data (basic model)



Transport position

Work position
Weight: 15,930 kg (35,120 lbs)
Length: 11,580 mm (38‘)

13,940 mm (45‘ 9“)
Width: 2,550 mm (8‘ 4“)

max. 5,200 mm (17‘ 1“)
Height: 4,000 mm (13‘ 2“)

max. 4010 mm (13‘ 2“)
Bale diameter:

von 0.60 bis 1.15 m (from 24” - 48”)

Required connections

1 double-acting and 1 single-acting control device for the pivoting drawbar

7-pin power outlet for the entire lighting system, excluding work lights

The included wiring harness is used to supply electricity to the machine

Connection for electric motor: 400V/50 Hz, CEE 125A 740 rpm, protection class IP55

Electric drive

  • Consists of a 90 kW (120 hp) electric motor with soft starter. Complete with switch cabinet, wiring, base with forklift slings, emergency switch and main switch.
  • Required connection for electric motor: 400 V / 50 Hz, CEE 125 A, protection class IP55

Weighing system, non-calibrated

  • Consists of weighing table, display and label printer

Weighing system, calibrated

  • Consists of weighing table, display and label printer

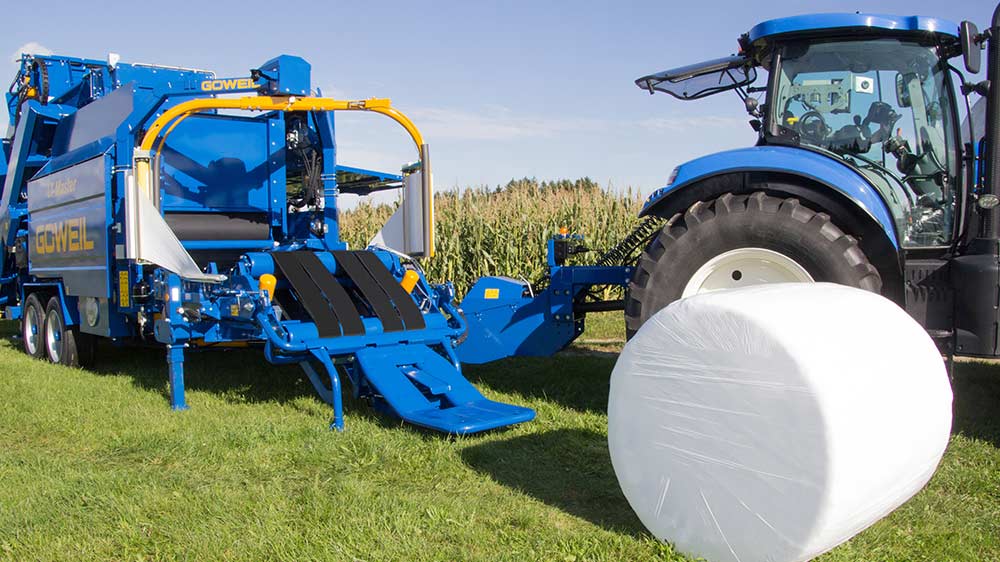

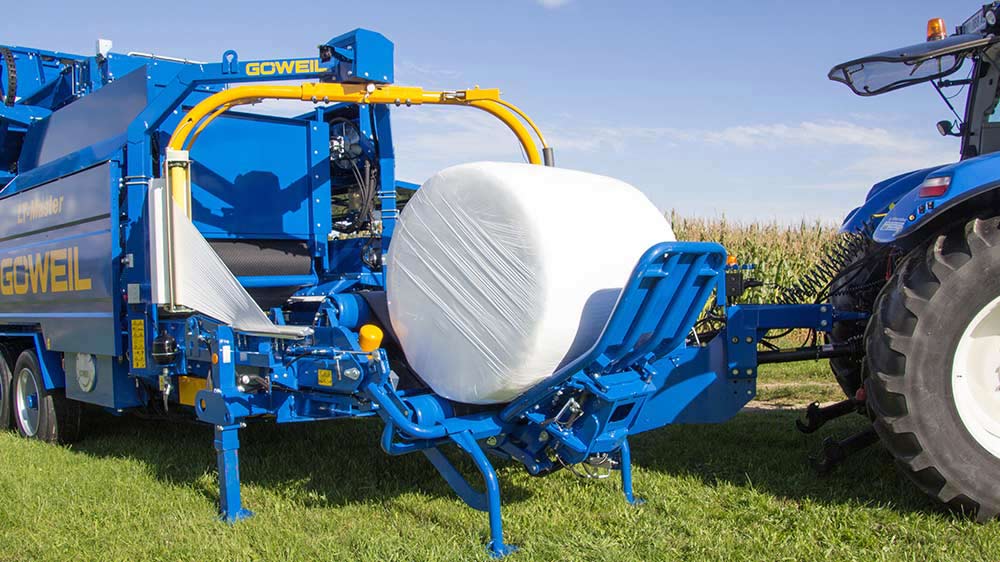

Bale delivery ramp with bale tipper

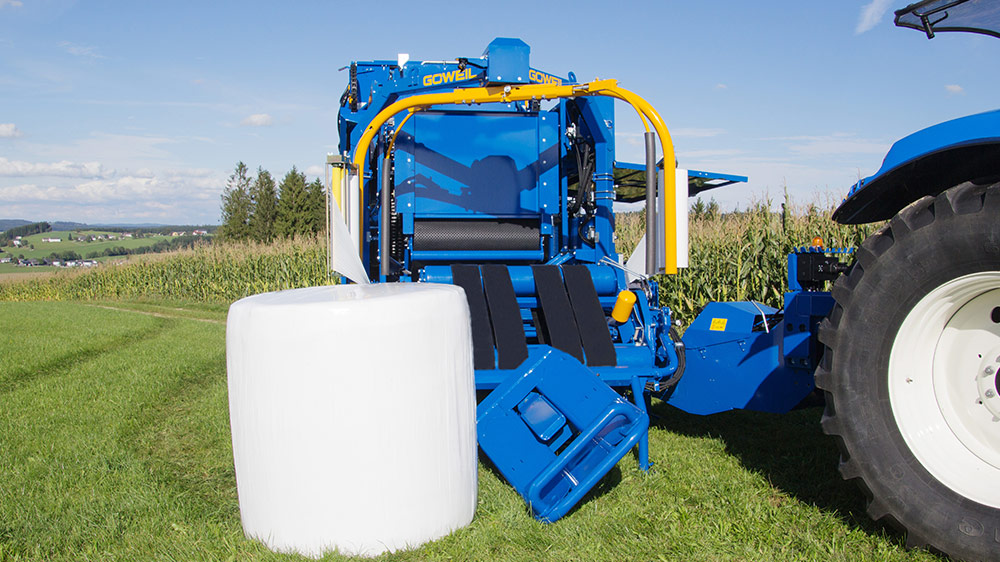

  • The bale can be set down gently on the face side (left or right), or forward.

Silage additive doseage

Attention! Tank not included

  • Dosistar control unit
  • Pump with filter
  • Electronic flow meter
  • Various nozzles
  • Suction hose for external container

Silage additive tank

  • 450 liter (120 gal) stainless steel tank mounted on the machine

 Drawbar eye types

  • Customers can choose from a large selection of drawbar eye types.



Hıgh compaction

The high compression strength compacts the material to a minimal volume. This helps save valuable storage space.

Fast and agile

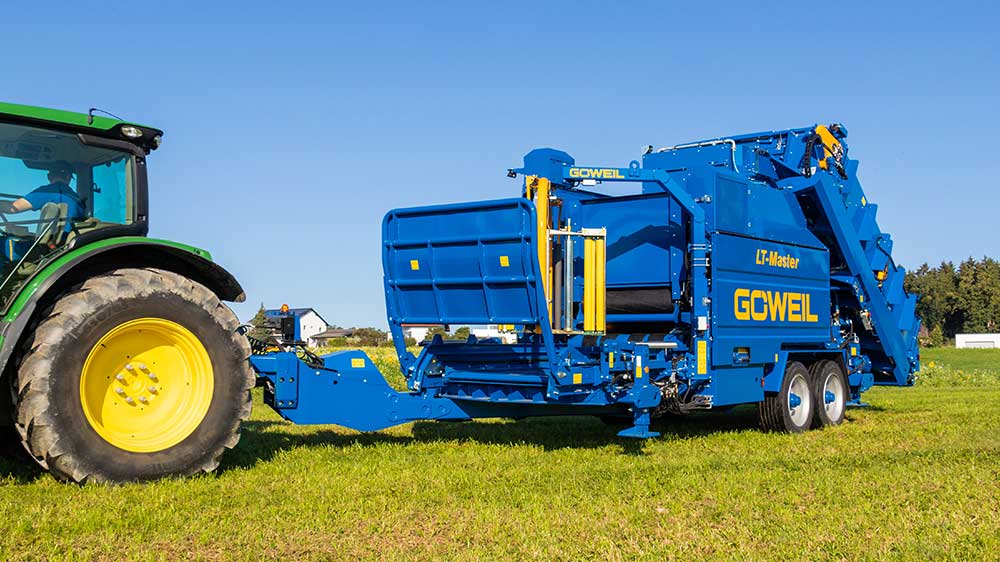

The pivoting drawbar can swivel up to 30° to either side. This provides for a tight turning radius and also allows the machine to be powered from either side.

Sophisticated brake system

Customers can choose between a standard dual-line air brake system and a hydraulicbrake system.

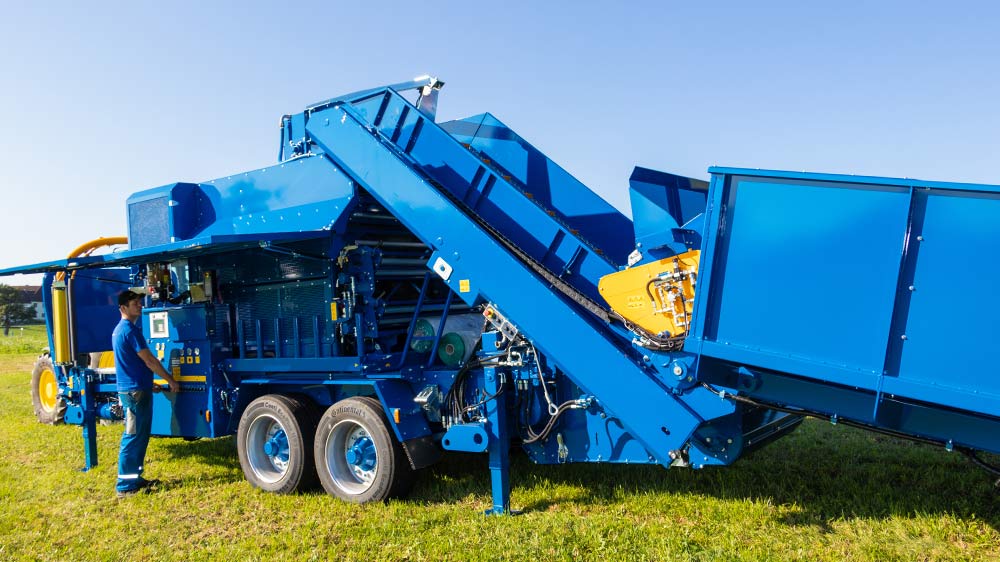

Machıne set-up

A tremendous plus! The machine is ready for operation within three minutes.

Perfectly lit

The LED lighting system keeps the VARIO-Master perfectly lit even if you have to work at night.

Well lubricated

The central lubricator continuously supplies the most important lubrication points with grease and oil. This keeps wear and tear to a minimum, guaranteeing an exceptionally long lifetime.

Always plenty ın stock

Thanks to its hydraulically folding film storage that holds up to 18 rolls of film, the VARIO-Master is ideally suited for even the longest workdays.

Ultimate control

The program control "PROFI" uses a bus system to control the entire work flow in fully automatic fashion - all that remains for the driver to do is monitor the machine.

No distance too far

The 80 km/h (50 mph) chassis allows you to quickly reach any jobsite - whether you travel by truck or tractor.
