G3010 Q Farmer

Agrotec

G3010 Q Farmer

G3010 Q FARMER | SQUARE BALE WRAPPER

The square bale wrapper is the ideal machine for single-person operation. The easy-to-operate STANDARD control with wireless operation allows the operator to combine cycles with perfect ease. Thanks to its compact design, the G3010 Q Farmer can be transported using almost any tractor.

G3010 Q Farmer
G3010 Q Farmer
G3010 Q Farmer
G3010 Q Farmer

Single wrapping arm

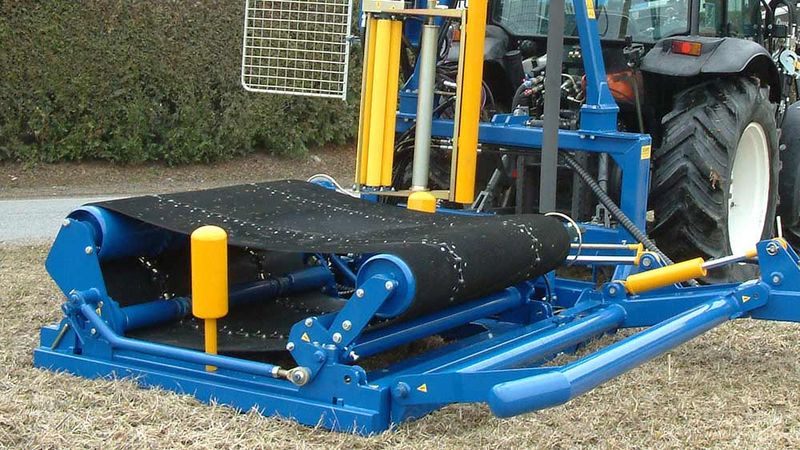

Hydraulically tilting wrapping table with mechanical belt length adjustment

Wide, continuous belt with belt guide and 2 bale guide rollers

Bale deposit to the left and the right

Combined film stretching unit 500 mm and 750 mm (20” and 30”)

Automatic film cutting and holding system

Hydraulically adjustable lift axle

Removable, hydraulic articulated drawbar

Storage for 3 rolls of film

Tires 300/80-15.3AW

Light and indicator system

LED work lights

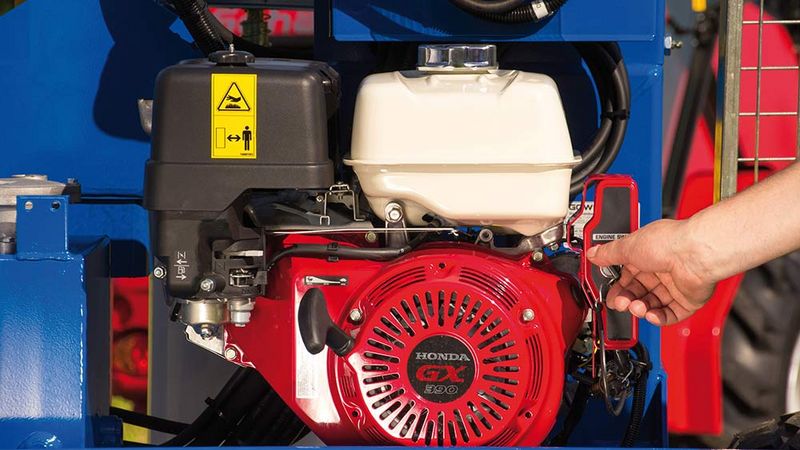

1-cylinder Honda gasoline engine

8.2 kW gasoline engine with battery, electric starter, return filter and 30 l hydraulic oil tank

Feed rate shut-off valve

This ensures that the film will overlap accurately for rectangular bales

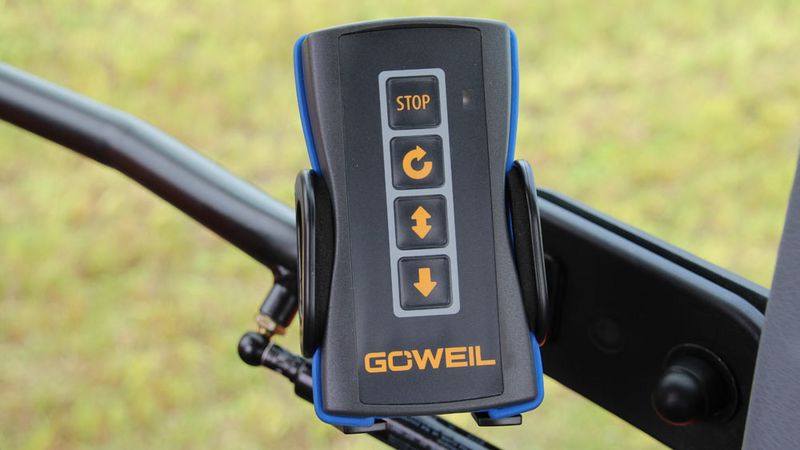

Program control STANDARD with radio remote control

The cycles "wrapping process" and "film-holding and cutting" start automatically, while “bale drop” starts at the push of a button.

Technical data (basic model)

Weight: 1,670 kg (3,680 lbs)
Length: 5,250 mm (17’ 3”)
Width: 1,950 mm (6’ 5”)
Height: 3,140 mm (10’ 4”) (with the lift axle extended)

For all bale dimensions:

up to 1.20 x 1.40 m (up to 48” x 56”)
Bale length:

up to 1.60 m (up to 63”)
Round bale diameter:

0.90 – 1.50 m (36” – 60”)

Oil requirement:

Self-sufficient oil supply
Bale weight round / square max. 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)

Required connections

7-pin power outlet for the entire lighting system (excluding work lights)

Additional bale guide roller

Dual-line air brake system

Lower linkage link

Dual-line hydraulic brake system - with emergency brake valve and accumulator

Hydraulic brake without accumulator and breakaway quick-closing device

10L spare fuel can, including bracket

Tires 380/55-17AW

  • Width altered to 2,130 mm (7’)

Film monitoring unit

  • Stops the wrapping process if film tears or runs out

Drawbar eye types

  • Customers can choose from a large selection of drawbar eye types
