G3010 Q Exclusiv

Agrotec

G3010 Q Exclusiv

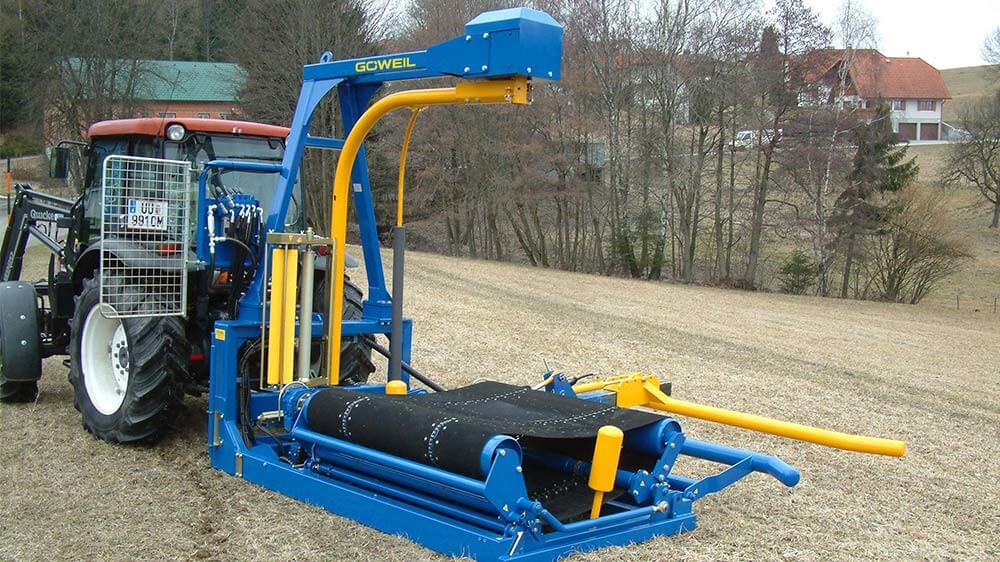

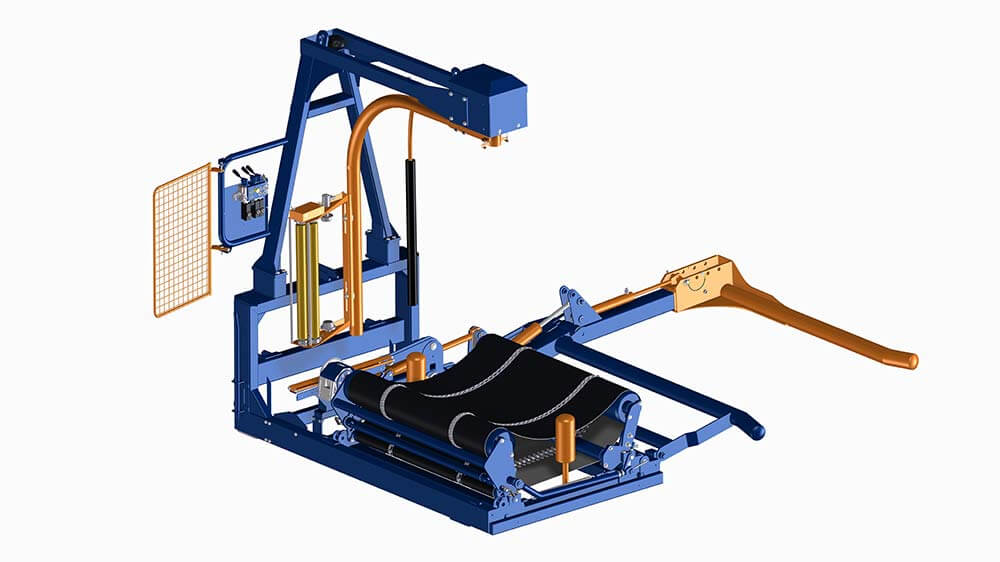

G3010 Q EXCLUSIV | SQUARE BALE WRAPPER

Equipped with a hydraulic bale pick-up, the G3010 Q Exclusiv is distinguished by its robust design as well as its low working height. The wide, continuous belt guarantees uniform wrapping of each and every bale - even if it is misshapen. The wrapper is equipped with the program control STANDARD including radio remote control.

G3010 Q Exclusiv
G3010 Q Exclusiv
G3010 Q Exclusiv

Single wrapping arm

Hydraulically tilting wrapping table with mechanical belt length adjustment

Bale pick-up for square and round bales

Bale pick-up on the right against the direction of travel

Bale deposit on the left

Combined film stretching unit 500 mm and 750 mm (20” and 30”)

Automatic film cutting and holding system

Wide, continuous belt with belt guide and 2 bale guide rollers

Three-point linkage Cat. II

LED work lights

Feed rate shut-off valve

This ensures that the film will overlap accurately for rectangular bales

Program control STANDARD with radio remote control

"Bale pick-up" is controlled manually using the electronic joystick.
The cycles "wrapping process" and "film-holding and cutting" start automatically, while “bale drop” starts at the push of a button.

Technical data (basic model)

Weight: 1,150 kg (2,535 lbs)
Length: 2,980 mm (9’ 9”)
Width: 1,820 mm (6’)
Height: 2,810 mm (9’ 3”)

For all bale dimensions:

up to  1.20 x 1.40 m (up to 48” x 56”)
Bale length: up to 1.60 m (up to 63”)
Round bale diameter: 0.90 - 1.50 m (36” – 60”)
Oil requirement:

starting at 20 l/min at max. 190 bar
Bale weight round / square max 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)

Required connections

1 pressure connection and one depressurized return for the supply of the wrapper

3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)

Battery supply cable 5.3 meters (17 ft) 2x6 mm² with 3-pin power outlet

Additional bale guide roller

Fully automatic program control PROFI

  • The execution of all work cycles is fully automatic

Radio remote control

  • Only in combination with fully automatic program control PROFI
    Required connection: 3-pin power outlet for the electrical supply of the hand-held terminal
    (12 V / 10 A)

Film monitoring unit

  • Stops the wrapping process if film tears or runs out

Light and indicator system

  • Required connection: 7-pin power outlet for the entire lighting system (excluding work lightss)

Electric drive (without hydraulic oil)

  • 4 kW electric motor, return filter and 30 l hydraulic oil tank, fully assembled
    Required connection for electric motor: 400 V/50 Hz, CEE 16 A, protection class IP55

PTO drive shaft (without hydraulic oil)

  • Including gearbox with pump, slip-on tractor PTO drive shaft, return filter and 30 L hydraulic oil tank

1-cylinder Honda gasoline engine (without hydraulic oil)

  • 8.2 kW including battery, generator and electric starter as well as hydraulic system fully assembled
