G3010 Q Standard

Agrotec

G3010 Q Standard

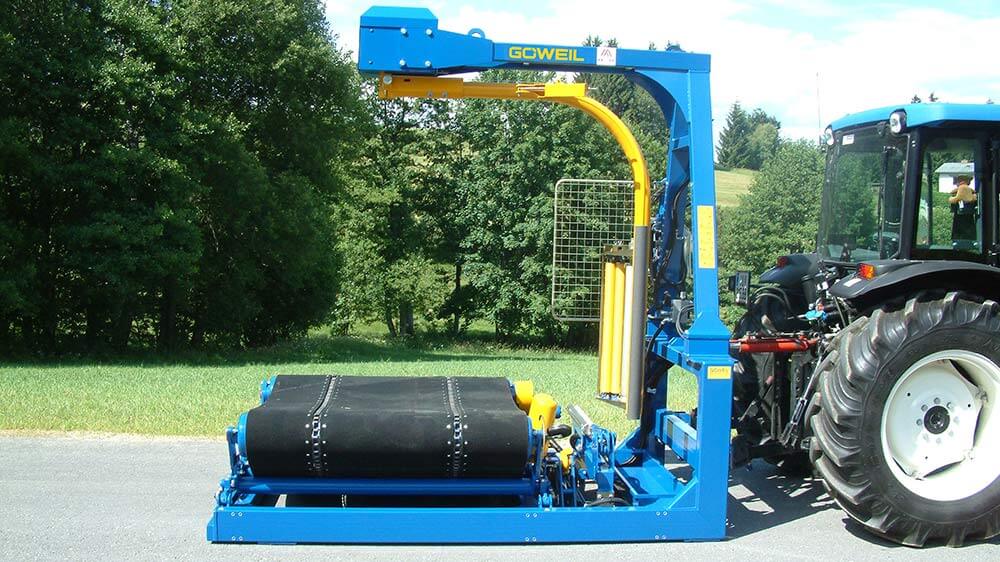

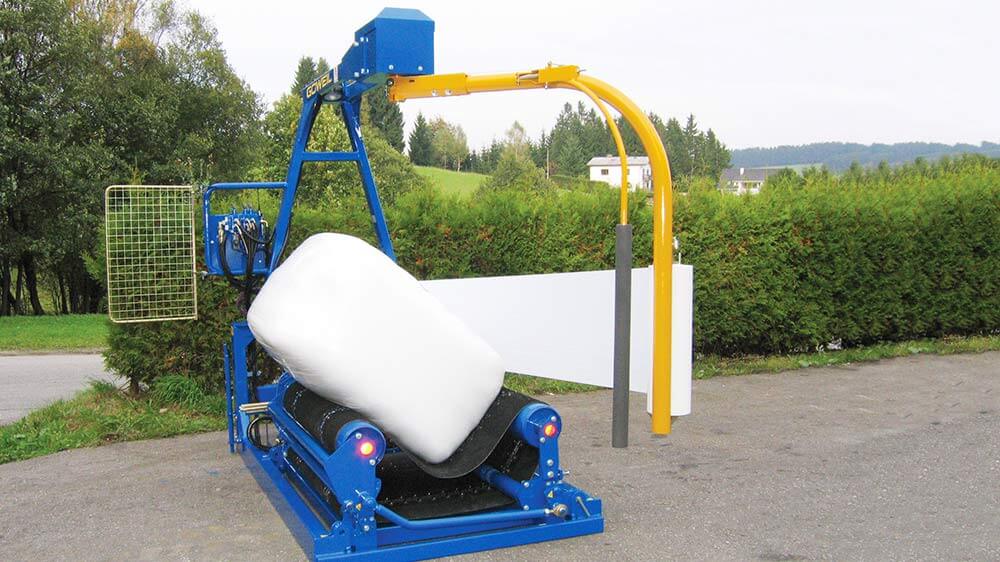

G3010 Q STANDARD | SQUARE BALE WRAPPER

The G3010 Q Standard is distinguished by its robust design as well as its low working height. The wide, continuous belt guarantees uniform wrapping of each and every bale - even if it is misshapen. The wrapper is equipped with the STANDARD program control.

G3010 Q Standard
G3010 Q Standard
G3010 Q Standard

Single wrapping arm

Hydraulically tilting wrapping table with mechanical belt length adjustment

Bale deposit to the left and the right

Combined film stretching unit 500 mm and 750 mm (20” and 30”)

Automatic film cutting and holding system

Wide, continuous belt with belt guide and 2 bale guide rollers

Three-point linkage Cat. II

Work lights

Feed rate shut-off valve

This ensures that the film will overlap accurately for rectangular bales

Program control STANDARD with radio remote control

The cycles "wrapping process" and "film-holding and cutting" start automatically, while “bale drop” starts at the push of a button.

Technical data (basic model)

Weight: 850 kg (1900 lbs)
Length: 2,705 mm (8’ 11”)
Width: 1,720 mm (5’ 8”)
Height: 2,760 mm (9’)
For all bale dimensions:

up to 1.20 x 1.40 m (up to 48” x 56”)
Bale length: up to 1.60 m (up to 63”)
Round bale diameter: 0.90 - 1.50 m (36” – 60”)
Oil requirement:

starting at 20 l/min at max. 190 bar
Bale weight round / square max 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)

Required connections

1 pressure connection and 1 depressurized return for the supply of the wrapper

3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)

Additional bale guide roller

Battery supply cable 5.3 meters (17 ft) 2x6 mm² with 3-pin power outlet

Fully automatic program control PROFI

  • The execution of all work cycles is fully automatic

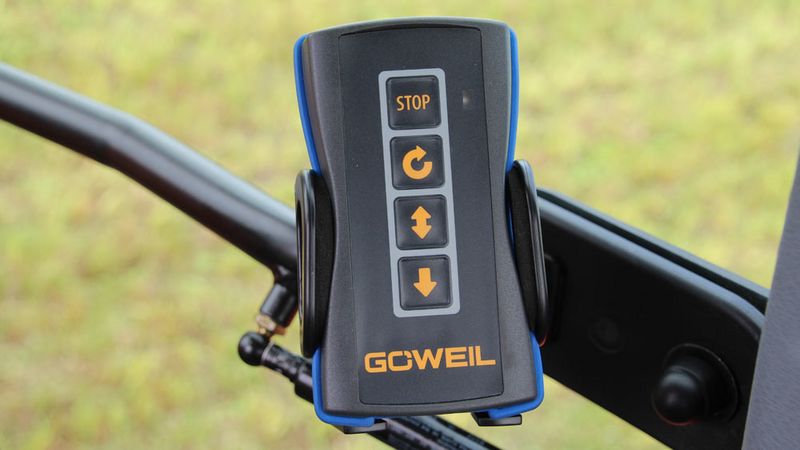

Radio remote control

  • Only in combination with fully automatic program control PROFI
    Required connection: 3-pin power outlet for the electrical supply of the hand-held terminal
    (12 V / 10 A)

Film monitoring unit

  • Stops the wrapping process if film tears or runs out

Light and indicator system

  • Required connection: 7-pin power outlet for the entire lighting system (excluding work lights)

Electric drive (without hydraulic oil)

  • Including a 4 kW electric motor with pump, return filter and 30 L hydraulic oil tank

PTO drive shaft (without hydraulic oil)

  • Including gearbox with pump, slip-on tractor PTO drive shaft, return filter and 30 L hydraulic oil tank

1-cylinder Honda gasoline engine (without hydraulic oil)

  • 8.2 kW gasoline engine with battery, electric starter, return filter and 30 l hydraulic oil tank

Galery

G3010 Q Standard
G3010 Q Standard
G3010 Q Standard
